When it comes to storage solutions for industrial gases, the choice of storage tanks plays a pivotal role in ensuring safety, efficiency, and reliability. Among the most sophisticated types are cryogenic storage tanks and LNG storage tanks, which are essential for industries dealing with liquefied gases and clean energy alternatives.
In this blog, we’ll explore these advanced storage systems, their applications, and how INOXCVA leads the way in manufacturing cutting-edge solutions.
What Are Cryogenic Storage Tanks?
Cryogenic storage tanks are specialised containers designed to store liquefied gases at extremely low temperatures. These tanks are engineered to maintain cryogens such as liquid nitrogen, oxygen, argon, hydrogen, helium, and even liquefied natural gas (LNG) in their liquid state.
Key Features of Cryogenic Storage Tanks:
- Vacuum Insulation Technology: Advanced insulation minimises heat transfer, maintaining the ultra-low temperatures required for cryogens.
- Durability: Built with high-strength materials to withstand extreme conditions.
- Customisable Designs: Tailored to meet specific industrial requirements.
INOXCVA stands out as a global leader in the production of vacuum-insulated cryogenic storage tanks. With decades of expertise, they offer both standard and customised solutions to cater to diverse industries like healthcare, energy, and manufacturing.
The Role of LNG Storage Tanks
Liquefied Natural Gas (LNG) is a clean energy source that has gained immense popularity due to its efficiency and eco-friendliness. LNG storage tanks represent a specialised subset of cryogenic storage tanks, specifically engineered to handle the unique properties of liquefied natural gas. These tanks are critical for industries transitioning toward sustainable energy solutions.

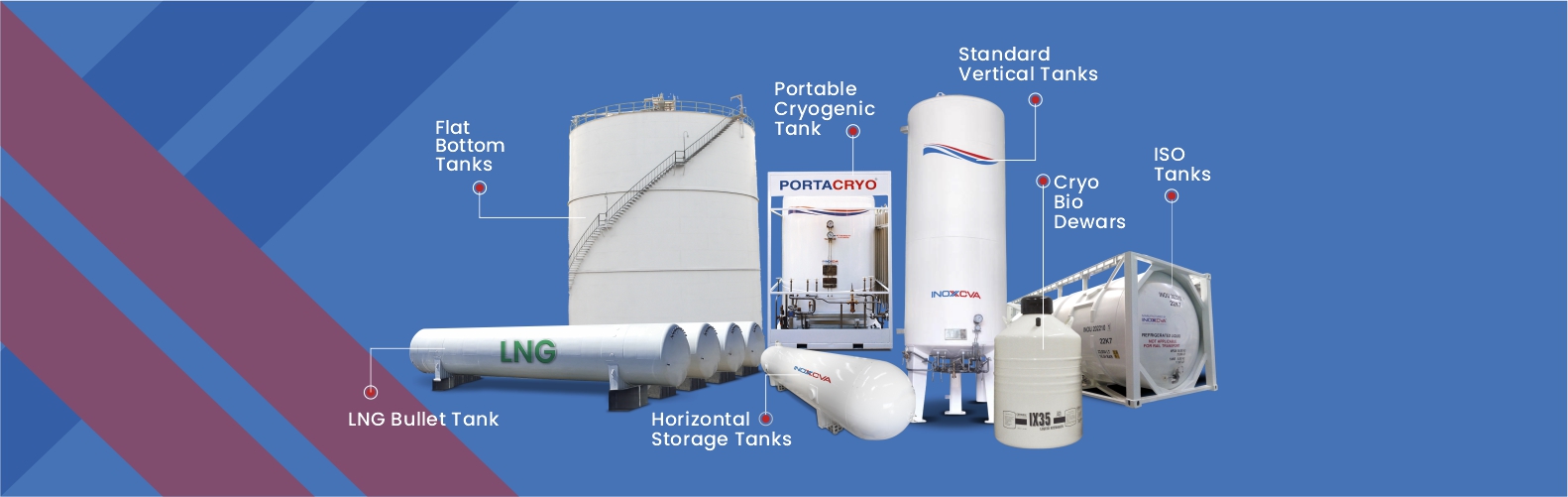

Types of Cryogenic Storage Tanks:
Cryogenic storage tanks are specialised vessels designed to store liquefied gases at extremely low temperatures (typically below -150°C). These tanks vary in design depending on the application, type of cryogen, and storage requirements.
1. Horizontal Cryogenic Tanks
- Design: Cylindrical and laid horizontally on saddles or supports.
- Common Use: Ideal for transport or when vertical height is limited.
- Applications: Industrial gas distribution, mobile refueling stations.
2. Vertical Cryogenic Tanks
- Design: Cylindrical tanks mounted vertically on concrete foundations.
- Advantages: Space-efficient, especially in permanent installations.
- Applications: On-site gas storage for hospitals, manufacturing units, and energy plants.
3. Portable Cryogenic Tanks (Dewars)
- Design: Small-scale, mobile, vacuum-insulated vessels.
- Used For: Handling and transport of small quantities of cryogenic liquids like LN₂, LOX.
- Applications: Laboratories, medical facilities, and small-scale industrial use.
4. Microbulk Tanks
- Capacity: Intermediate size between Dewars and bulk tanks.
- Benefit: Reduced handling and increased safety vs. multiple cylinders.
- Applications: Medical oxygen supply, specialty gas use in R&D, and small manufacturing.
5. ISO Containers / Cryogenic Tank Containers
- Design: Standardised for intermodal transportation (road, rail, sea).
- Special Feature: Vacuum-insulated and compliant with ISO standards.
- Applications: Global transport of LNG, liquid nitrogen, oxygen, argon, etc.
6. Spherical Cryogenic Tanks
- Design: Spherical shape for uniform stress distribution under pressure.
- Typically Used For: Very large volumes of cryogenic gases, including LNG.
- Applications: LNG terminals and refineries.
7. Underground Cryogenic Tanks
- Design: Installed below the ground surface.
- Advantage: Better thermal insulation from ambient temperature and safety.
- Applications: LNG storage in urban areas, defense installations.
8. LNG Bullet Tanks
- Shape: Cylindrical “bullet-shaped” horizontal tanks.
- Special Use: Specifically designed for storing LNG.
- Applications: LNG fueling stations, satellite regasification units.
9. Mobile Cryogenic Road Tankers
- Design: Insulated mobile tanks mounted on trucks or trailers.
- Purpose: Transport cryogenic liquids over long distances.
- Applications: Supply to remote facilities or satellite storage systems.
INOXCVA’s Cryogenic storage tanks are renowned for their robust design and ability to handle the unique challenges of storing gases. From large-scale industrial setups to mobile applications like semi-trailers, INOXCVA offers scalable solutions tailored to client needs.
Why Choose Cryogenic Storage Tanks?
Both cryogenic and LNG storage tanks play a vital role in:
- Energy Transition: Supporting clean energy initiatives by storing eco-friendly fuels like LNG.
- Industrial Efficiency: Enabling long-term storage of gases without significant loss due to evaporation.
- Safety Standards: Designed to meet stringent international safety regulations.
INOXCVA integrates cutting-edge technologies such as vacuum insulation and advanced materials into their designs, ensuring maximum efficiency and compliance with global standards.
INOXCVA: A Pioneer in Cryogenic Storage Solutions
INOXCVA has consistently pushed the boundaries of innovation in cryogenic equipment manufacturing. Their expertise spans the entire cryogenic temperature range, making them a trusted partner for industries worldwide.
What Sets INOXCVA Apart?
- Turnkey Solutions: From design to commissioning, INOXCVA provides end-to-end services.
- Scalability: Whether you need a single tank or an integrated system, INOXCVA offers flexible solutions.
- Safety Compliance: All products adhere to international safety standards.
INOXCVA’s commitment to quality is evident in their extensive product range, which includes bulk storage systems for cryogens and bespoke designs for specialised applications.
Applications Across Industries
Cryogenic and LNG storage tanks serve a variety of sectors:
- Energy: Storing LNG for power generation and transportation.
- Healthcare: Supplying liquid oxygen for hospitals.
- Manufacturing: Providing liquid nitrogen for industrial processes.
- Food & Beverage: Preserving perishables using liquid carbon dioxide.
INOXCVA’s innovative designs ensure seamless integration into these industries, enhancing operational efficiency while reducing environmental impact.
Future Trends in Cryogenic Storage
As global demand for clean energy rises, the need for advanced storage solutions will grow exponentially. Innovations like improved insulation materials and smart monitoring systems are set to redefine the industry.
INOXCVA continues to lead this evolution by investing in research and development. Their focus on sustainability aligns with global efforts to reduce carbon footprints through cleaner energy alternatives like LNG.
Conclusion
Understanding the intricacies of cryogenic storage tanks and LNG storage tanks is crucial for industries aiming to optimise their operations while embracing sustainable practices. With INOXCVA at the forefront of innovation, businesses can rely on state-of-the-art solutions that prioritise safety, efficiency, and environmental responsibility.
Whether you’re looking for reliable cryogenic equipment or advanced LNG storage systems, INOXCVA delivers unparalleled expertise and quality. Explore their offerings today to elevate your industrial capabilities!
