LNG growth as a clean energy source has led to the need for specific storage solutions. An LNG storage tank is one of the key components of the LNG supply chain and it is specifically used for storing liquefied natural gas (LNG) at cryogenic temperatures. In this blog. we will discuss the different kinds of LNG storage tanks, how they are built, how they work and where they are used in the energy sector.

Learn About LNG Storage Tanks

An LNG storage tank is a container used for storage of liquefied natural gas. LNG is natural gas that has been cooled to -162 °C (-260 °F) to liquefy it for easier storage and transport. The LNG storage tank is primarily designed to keep the contents at this cryogenic temperature, preventing the gas from returning to its gaseous state.

There are different types of LNG storage tanks which are based on design and intended use.

Examples of the most common lng storage tank types are:

  1. Single containment tanks: These consist of a single wall holding the LNG. They are cheaper to build but provide minimal protection in the event of spills and leaks.
  2. Double Containment Tanks: A double containment tank consists of an inner tank that stores the LNG and an outer tank that acts as secondary containment in the event of a spill. The design lowers the chance of contaminating the environment, thus improving safety.
  3. Full Containment Tanks: Full containment tanks have an inner and outer shell and a powerful concrete outer wall to withstand external impacts. This type is the safest type and are used in large LNG terminals.
  4. Underground Tanks: These tanks can be placed underground, and are often lined with materials to keep them from leaking. The low temperature of the LNG can freeze the adjacent soil, providing a natural impermeable barrier to leakage.
  5. Membrane Tanks: These tanks consist of a thin membrane made of either stainless steel or other materials that is used to contain the LNG. They are commonly used in LNG carriers because of their low weight and efficient design.

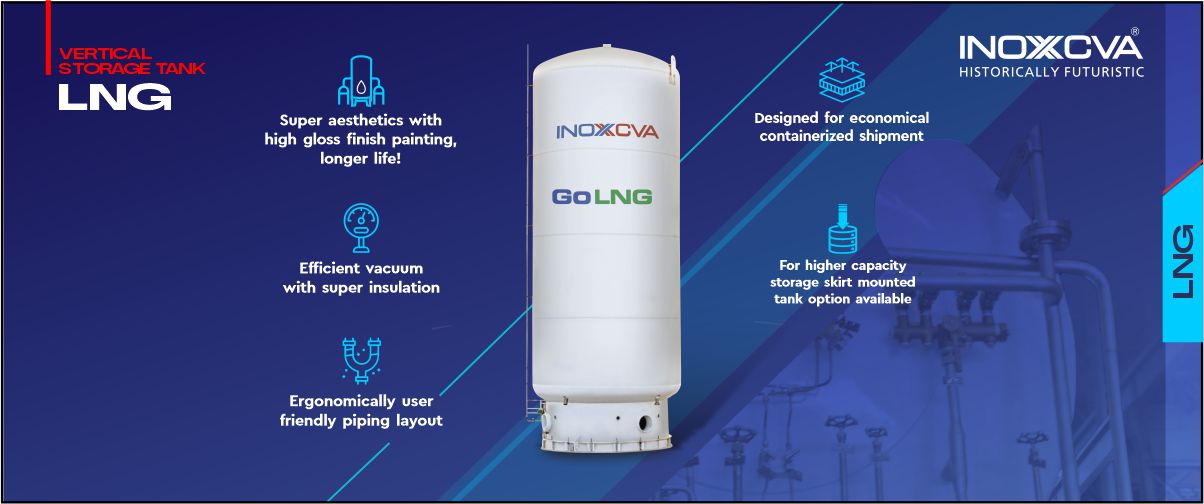

Vaccum Insulated Storage Tanks

The skidded modules, meticulously crafted in a controlled shop environment, ensure superior quality control and offer significant advantages in installation. Their design facilitates easy installation, effectively reducing both installation time and costs. Our Vacuum Insulated Storage Tanks are available in both vertical and horizontal orientations, with options for fixed or skid-mounted portability. These tanks are engineered to withstand pressures ranging from 8 Kg/cm² to 35 Kg/cm², making them versatile for various applications. We provide a range of capacities to meet diverse needs: portable storage tanks can accommodate up to 60 m³, while fixed systems can range from 10 m³ to an impressive 1000 m³. This combination of quality, efficiency, and flexibility positions our storage solutions as an ideal choice for any project.

Key Contributions of INOXCVA in LNG Storage

  1. Innovative Storage Solutions: INOXCVA offers a variety of LNG storage tank designs, including single containment, double containment, and full containment tanks, tailored to meet specific operational needs. Their tanks are built with high-strength materials and advanced insulation technologies to ensure safety and durability.
  2. Turnkey Projects: The company provides comprehensive solutions that encompass the design, engineering, manufacturing, and installation of LNG storage systems. A notable project includes the establishment of a mini LNG terminal in The Bahamas, which will feature 10 large vacuum-insulated storage tanks and serve as a model for smaller LNG distribution hubs.
  3. Support for Clean Energy Transition: By providing secure and efficient LNG storage solutions, INOXCVA plays a significant role in facilitating the transition to cleaner energy sources. Their products not only cater to large industrial applications but also support smaller-scale operations, enhancing the accessibility of LNG as an alternative fuel.

Construction Elements of LNG Storage Tanks

This includes the layout of the LNG storage tank, distribution re-flashing, insulation technologies, floating roofs, etc. Key features include:

  1. Insulation: Liquefied natural gas tanks are heavily insulated with materials like perlite or polyurethane foam in order to keep the partner molecules at low temperatures. This insulation reduces heat transfer from the surroundings and prevents the evaporation of the LNG.
  2. Materials: The inner tank is commonly made of nickel-steel alloys, which do not tend to become brittle at extremely lower temperatures. The outer tank is made of carbon steel / reinforced concrete.
  3. Auto-Refrigeration System: The auto-refrigeration system is built in many LNG tanks and they can vent boil-off gas (gas that evaporates from the liquid) to control the temperature. This system also helps keep the pressure and temperature within acceptable range.

LNG Storage Tanks Applications

LNG storage tanks perform multiple key functions in the energy sector:

  1. Import/Export Terminals: Import/export terminals consist of large-scale LNG storage tanks that hold liquefied natural gas until it needs to be regasified for distribution or loaded onto ships for transportation.
  2. Peak Shaving Facilities: Utilizes smaller LNG storage tanks to regulate variances in demand for natural gas. Operators will be able to store excess liquid natural gas (LNG) during low-demand period and release them during times of peak demand.
  3. Bunkering Stations: Used for refueling ships powered by liquefied natural gas, bunkering stations utilize LNG storage tanks as a cleaner alternative to conventional marine fuels.
  4. Power Generation Plants: LNG is used as a fuel source in some power plants which means they need to store LNG on-site through the help of storage tanks to maintain a steady supply of natural gas for electricity generation.
  5. Industrial Applications: Some industries utilize LNG as a feedstock in chemical processes or as an energy source for factory systems, which calls for specific storage systems.

Safety Considerations

As it is highly flammable and cryogenic liquefied natural gas is a substance with a series of risks in its storage. So, safety precautions play a key role in the design and operation of LNG storage tanks:

  1. Fire and Vapor Detection Systems : These are advanced detection systems monitor for leaks or fires around the tank facilities, enabling rapid response to potential incidents.
  2. Containment Systems: Most facilities have secondary containment systems like dikes or berms around their tanks to collect potential spills.
  3. Preventive Maintenance: Regular inspection of all parts of the storage system ensures that everything is in good working condition can help prevent accidents.

Conclusion

LNG storage tank is a crucial element of the worldwide energy industry, allowing for the secure and effective storage of liquefied natural gas. There are several types of this kind of tank and each one is engineered for specific applications and serves as a vital mechanism for providing natural gas availability while meeting the highest safety standards. For both industry professionals and consumers alike, understanding the importance of LNG storage solutions will be key as demand for cleaner energy sources continues to rise.

Through incorporation of state-of-the art engineering methods and materials, modern design LNG storage tanks deliver protective solutions for the careful conservation of this vital energy class while reducing ecological footprint as well as enhanced security procedures for the different industrial applications from the power industry.
